LFS-12
CURRENT TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting insulation and fully enclosed support
construction, encloses primary & secondary windings and
annular core in the epoxy resin casting body. The product has
two secondary windings (one measuring winding and one
protective winding). It is widely used for measuring current,
electric energy and protective relaying in the power system with
the rated frequency 50Hz or 60Hz and highest voltage for
equipment 12kV.
Technical Data
1、Rated insulation level: 12/28/75kV
2、Rated frequency: 50/60Hz
3、Installation site: Indoor
4、Technical standard: IEC 60044-1
(IEC 61869-1&2)
|
Rated current ratio(A) |
Secondary accuracy classes combination |
Rated output (VA) |
FS |
ALF |
Rated short-time thermal current (kA/S) |
Rated dynamic current ( kA) |
||
|
Measuring |
Protective |
|||||||
|
0.2(S) |
0.5 |
10P |
||||||
|
5~200/5 |
0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P |
10 15 |
15 |
15 |
5 (10) |
10 |
80I1n |
200I1n |
|
300/5 |
20 |
50 |
||||||
|
400/5 |
30 |
75 |
||||||
|
500/5 |
30 |
75 |
||||||
|
600/5 |
40 |
80 |
||||||
|
800/5 |
40 |
80 |
||||||
|
1000/5 |
63 |
105 |
||||||

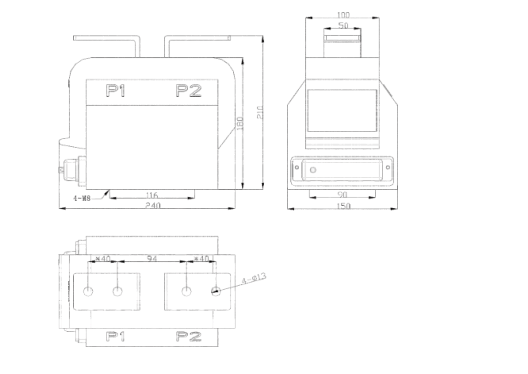

Outline
