LDS135
CURRENT TRANSFORMER
□ Double cable Cores Type CT.
LDS135 adopts newly high permeability core with high measuring accuracy.
Secondary winding fully enclosed vacuum casting in antiflaming plastic
shell. It easily installed by making the primary cable through the whole,
applied to electrical system cable with highest equipment voltage 0.72,
functioning as the tool of current metering , signal collection, relay
protection. The current transformer can be executed according to the
standard IEC 61869-1:2007 and IEC 61869-2:2012. Or IEC60044-1
Technical Data
1、Rated secondary current: 5A
2、Power frequency withstand voltage: 3kV
3、Rated frequency: 50/60Hz
4、Installation site: Indoor
5、Technical standard: IEC 60044-1
(IEC 61869-1&2)
Specification
Model
LDS135-C
LDZC135-P
LDZC135-CP
Purpose
Measuring current transformer
Protective current transformer
Double winding current transformer
Rated
transforma tion ratio(A)
COSΦ=0.8
Accuracy class
and rated burden(VA)
0.5
1
10P10
0.5
10P10
150/5
1
2.5
2.5
1
1
200/5
2.5
5
2.5
2.5
2.5
300/5
2.5
5
2.5
2.5
2.5
400/5
5
10
5
5
5
500/5
5
10
5
5
5
600/5
5
10
5
5
5

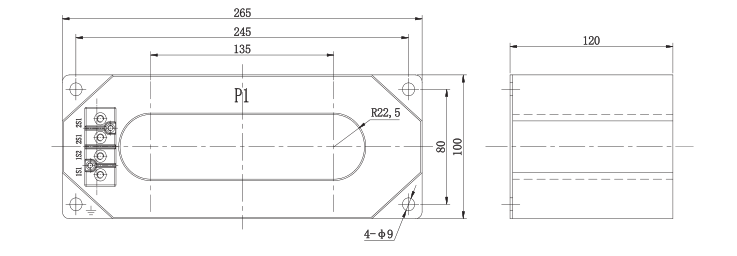

Outline
